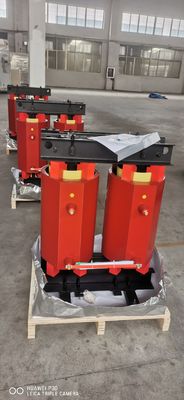

Cast Resin Dry 100K/125K Dry Type Transformer 30-10000Kva For Low Loss Distribution

Product Description:

The Cast Resin Type Transformers are designed to meet the specific requirements of different industries. They have a capacity range of 30~10000kVA, making them suitable for a wide range of applications. These transformers have a maximum temperature rising of 100K or 125K, making them safe to use in various environments. Their ambient temperature should be less than 40℃.

The Cast Resin Type Transformers are available with different connection symbols. The most commonly used symbols are Yyn0 and Dyn11. These symbols are used to indicate the connection type of the transformer. The voltage grade of these transformers is 6~35kV. This makes them suitable for different voltage applications.

One of the main advantages of Cast Resin Type Transformers is that they are environment-friendly. They do not contain any oil, which makes them safe to use in different environments. They are also easy to install and require very little maintenance. They are also resistant to moisture and can withstand harsh weather conditions.

Another advantage of Cast Resin Type Transformers is that they have a low noise level. They are designed to operate silently, which makes them ideal for use in residential areas. They are also highly reliable and have a long service life. They are designed to withstand extreme temperatures and can operate in harsh environments without any issues.

In conclusion, Cast Resin Type Transformers are an ideal choice for indoor transformers. They are highly efficient, reliable, and low maintenance. They are also environment-friendly and safe to use in different environments. They are available in different capacities and voltage grades, making them suitable for a wide range of applications. They are a perfect choice for power distribution systems, industrial plants, and commercial buildings.

Features:

• Product Name: Cast Resin Dry Type Transformer
• Frequency: 50Hz or 60Hz
• Connection Symbol: Yyn0 or Dyn11
• Maximum Temperature Rising: 100K or 125K
• Voltage Grade: 6~35kV
• Ambient Temperature: ＜40℃

Keywords: Cast Resin Low Voltage Transformers, Cast Resin Indoor Transformers, Cast Resin Type Transformers

Technical Parameters:

Applications:

• Industrial: Our Cast Resin Low Voltage Transformers are well-suited for industrial applications, such as in chemical plants, steel mills, and other manufacturing facilities. They are designed to withstand harsh environments and are resistant to moisture, dust, and other contaminants.
• Commercial: Our Cast Resin Indoor Transformers are ideal for commercial buildings, such as office complexes, shopping malls, and hospitals. They are compact and easy to install, making them a great choice for indoor applications where space is limited.
• Residential: Our Cast Resin Type Transformers are also suitable for residential use, such as in apartment buildings and housing complexes. They are safe and reliable, and their low noise levels make them an ideal choice for quiet environments.

• Power Distribution: Our transformers can be used for power distribution in a variety of settings, such as in substations, power plants, and other utility applications.
• Renewable Energy: Our transformers are also suitable for use in renewable energy applications, such as in wind and solar power plants.
• Transportation: Our transformers can also be used in transportation applications, such as in railway systems, airports, and other transit facilities.

Our Resin Insulated Dry Type Transformer, SC series, has a minimum order quantity of 1 set. Price is to be confirmed, and packaging details include wooden cases. Delivery time is approximately 30 days per set, and payment terms include FOB, EXW, CIF, and more. Our supply ability is up to 1000 per year, ensuring that we can meet the needs of our customers. Our transformers have an ambient temperature of less than 40℃ and an insulation grade of Class F/H. They are 3-phase transformers and come with either no-exitation tapping change or load tapping change. The connection symbol for our transformers is Yyn0 or Dyn11.

Customization:

• Brand Name: Resin Insulated Dry Type Transformer
• Model Number: SC series
• Place of Origin: CHINA
• Certification: IEC GB
• Minimum Order Quantity: 1 set
• Price: To be confirmed
• Packaging Details: WOODEN CASE
• Delivery Time: 30 DAYS/SET
• Payment Terms: FOB,EXW,CIF......
• Supply Ability: 1000 PER YEAR
• Phase: 3 Phases
• Voltage adjustment mode: No-exitation Tapping Change Or Load Tappig Change
• Maximum temperature rising: 100K Or 125K
• Cooling mode: Air Cooling (AN) Or Fan Cooling(AF)
• Frequency: 50Hz Or 60Hz

Our Cast Resin Type Transformers, also known as Cast Resin Low Voltage Transformers, are customizable to fit your specific needs. Contact us today to learn more about how we can meet your requirements.

Support and Services:

Our Cast Resin Dry Type Transformers are designed for high efficiency and reliability. They are suitable for a wide range of applications, including industrial, commercial, and renewable energy projects.

Our technical support team is available to assist with any questions or concerns regarding the installation, operation, or maintenance of our transformers. We also offer a range of services, including testing, commissioning, and training to ensure that our customers get the most out of their investment.

Our transformers are built to meet international standards and are tested to ensure that they meet or exceed all required specifications. We use only the highest quality materials and components to ensure that our transformers are durable and long-lasting.
